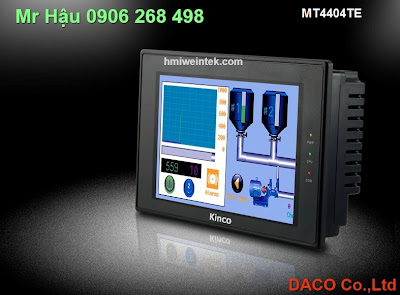

Model: Kinco MT4404TE
 |
| MT4404TE KINCO |
Thông số kỹ thuật:
Model
|
MT4404TE
|
Performance Specification
|
|
Display
|
7" 16:9 TFT
|
Resolution
|
800*480
|
Color
|
65536
|
Backlight
|
LED
|
Brightness
|
300cd/m2
|
Backlight Life
|
50000 hours
|
Touch Panel
|
4-Wire Precision Resistance Network
|
Processor
|
32-bit 400MHz RISC
|
Memory
|
8M FLASH + 16M SDRAM
|
U Disk
|
None
|
SD Card
|
None
|
Recipe Memory & RTC
|
256KB + RTC
|
Printer Port
|
Serial Port
|
Ethernet
|
Yes
|
Program Download
|
USB SLAVE/Serial Port
|
COM port
|
COM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4,
COM2:RS232
|
Electrical
Specification
|
|
Rated Power
|
8W
|
Rated Voltage
|
DC24V
|
Input Range
|
21~28VDC
|
Power Down Allowed
|
<5ms
|
Insulation Resistance
|
Greater than 50MΩ@ 500V DC
|
Dielectric Strength Test
|
500 VAC 1 Minute
|
Structure
Specification
|
|
Shell Color
|
Black
|
Shell Material
|
ABS
|
Dimensions(mm)
|
206.8×124.2×45.1mm
|
Cutout Size(mm)
|
193.5×112.5mm
|
Weight
|
0.7 Kg
|
Environment
Specification
|
|
Operating Temperature
|
0～45℃
|
Operating Humidity
|
10～90% Non-Condensing
|
Storage Temperature
|
-10～60℃
|
Storage Humidity
|
10～90% Non-Condensing
|
Shockproof Test
|
10～25Hz (X, Y, Z Direction, 2G, 30 Minutes)
|
Cooling Method
|
Natural Air Cooling
|
Certification
|
|
Degree of Protection
|
IP65 (Front Panel)
|
CE Certification
|
Comply with EN61000-6-2:2005 and EN61000-6-4:2007Standards
|
FCC Compatibility
|
Complies with FCC Class A
|
